Combo Gate

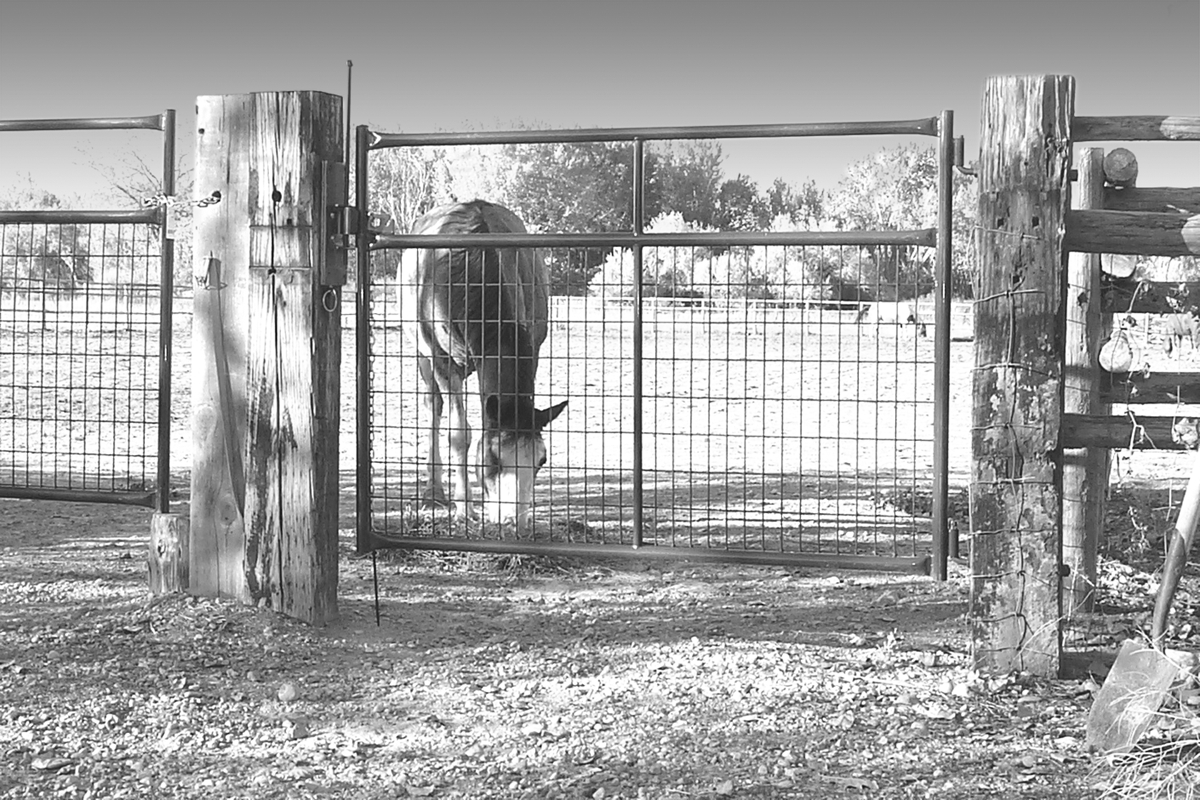

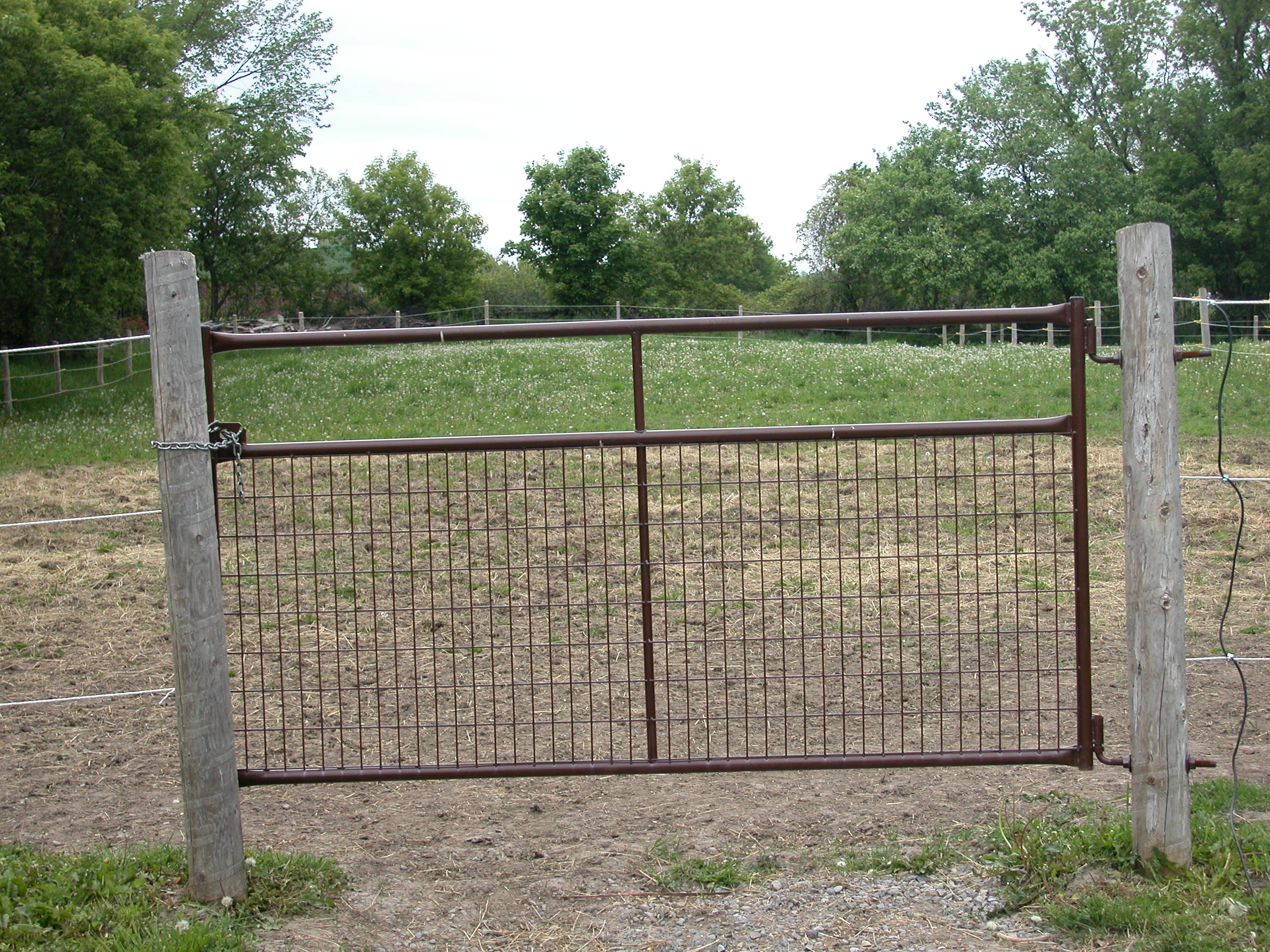

The Combo Gate is the newest addition to the HiQual line. If you're looking for a gate that works with everything from calves to goats, sheep to dogs and llamas to little children, the Combo Gate is an ideal choice.

Available in 4', 6', 8', 10', 12', 14' & 16' lengths

combo gates

Specifications

  • Height:
         48"
  • Posts:
         1 ½" x 16 gauge round, capped with plastic plug
  • Rails:
         3 - 1 ½" x 16 gauge
    round
  • Braces:
         1" x 16 gauge round, notched & welded
  • Chain:
         3/16" x 34" galvanized proof coil, with 3/16" quick link
  • Hinge:
         ¾" x 11 ¼" adjustable L-Bolt
  • Mesh:
         2" W x 4" H, 6 gauge, recessed
  • Paint:
         Baked on powder coat paint
  • Weight (in pounds):
         4'-32, 6'-45, 8'-56, 10'-69, 12'-80, 14'-90, 16'-101
  • Steel:
         High-tensile, 58,000 psi tubular steel
  • Warranty:
         1 year

Highlighted Features & Advantages

  • Square corners for livestock safety
  • Economical 16 gauge posts and rails for light confinement
  • Wire mesh panel inset and welded flush within frame for safety
  • Narrow mesh vertical openings to prevent injury
  • Balanced gate without weak spots
  • Secure latching chain
  • Strong ¾" x 11 ¼" threaded rod hinges are economical and long lasting

Suggested Applications

  • Light confinement
  • Driveways
