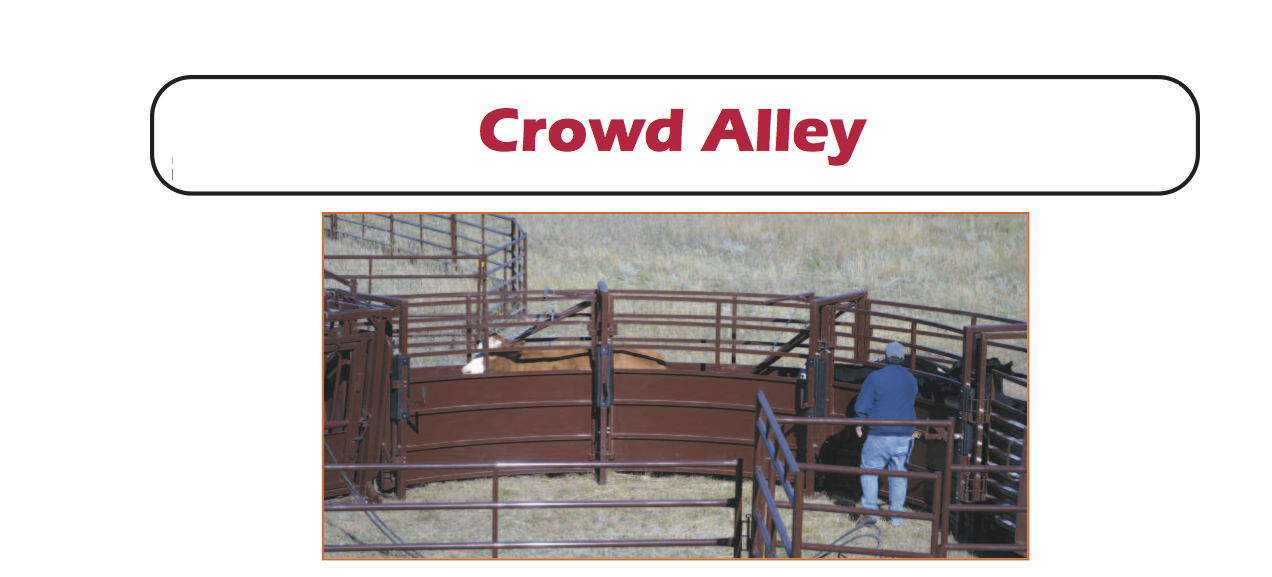

Crowd Alley

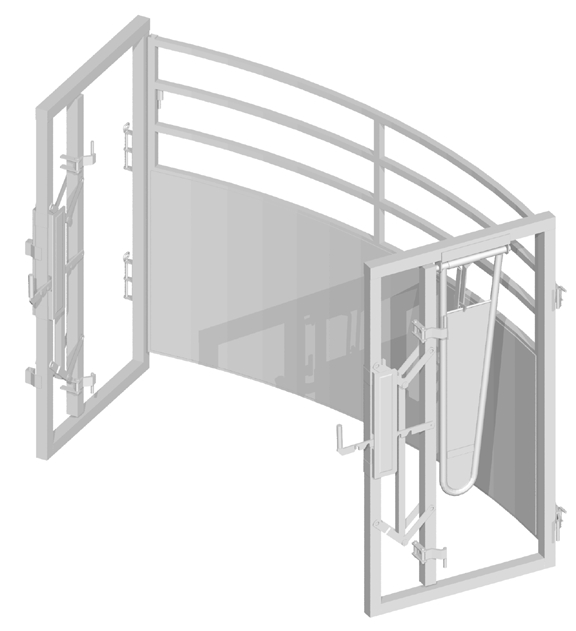

Designed for maximum cattle flow and ease of operation, the Classic Crowd Alley can be set up in a left or right hand curve, and even an "S" curve, with no additional hardware.

Available in 30' Curved or Straight

Specifications

• Overall Dimensions:
       30' L x 3' 6" W x 7' H
• Materials:
       Panel: 1 ½" x 16 gauge square with 42" high 16 gauge sheeting
       Frame: 2 ½ x .100 wall square
       Blocker:  1 ½" x 16 gauge round with 16 gauge sheeting
• Configurations:
       Curved Alley:
            Inside - 7.5'/section
            Outside - 10'/section
       Straight Alley:
            Both - 10'/section
• Paint:
       Baked on powder coat paint
• Weight (in pounds):
       Curved: 1662
       Straight: 1704
• Warranty:
       1 year

Highlighted Features & Advantages

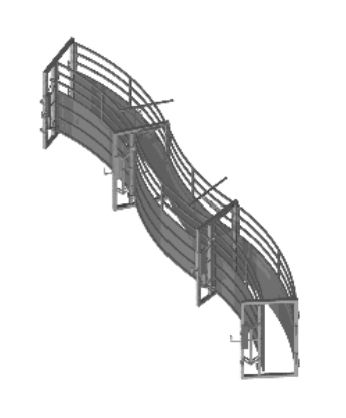

• Can be configured in left or right hand C or S curve with no additional components
• Panels are 7' tall while the lower height sheeting provides access to the cattle without a catwalk
• Panels suspended above the ground so they do not bind up with mud or snow
• Panels are sealed with silicone to reduce noise and rusting
• "Butterfly" hinge system allows for quick and easy one-handed width adjustment from 18" to 30"
• Overhead backstops adjust for all sizes of cattle to safely prevent cattle from backing up in the alley
• A straight alley is also available
• Fixed panels can be opened quickly in emergency situations

Suggested Applications

• All cattle operations


Resources:

Crowd Alley Info Sheet
and Parts List
