Crowd Tub

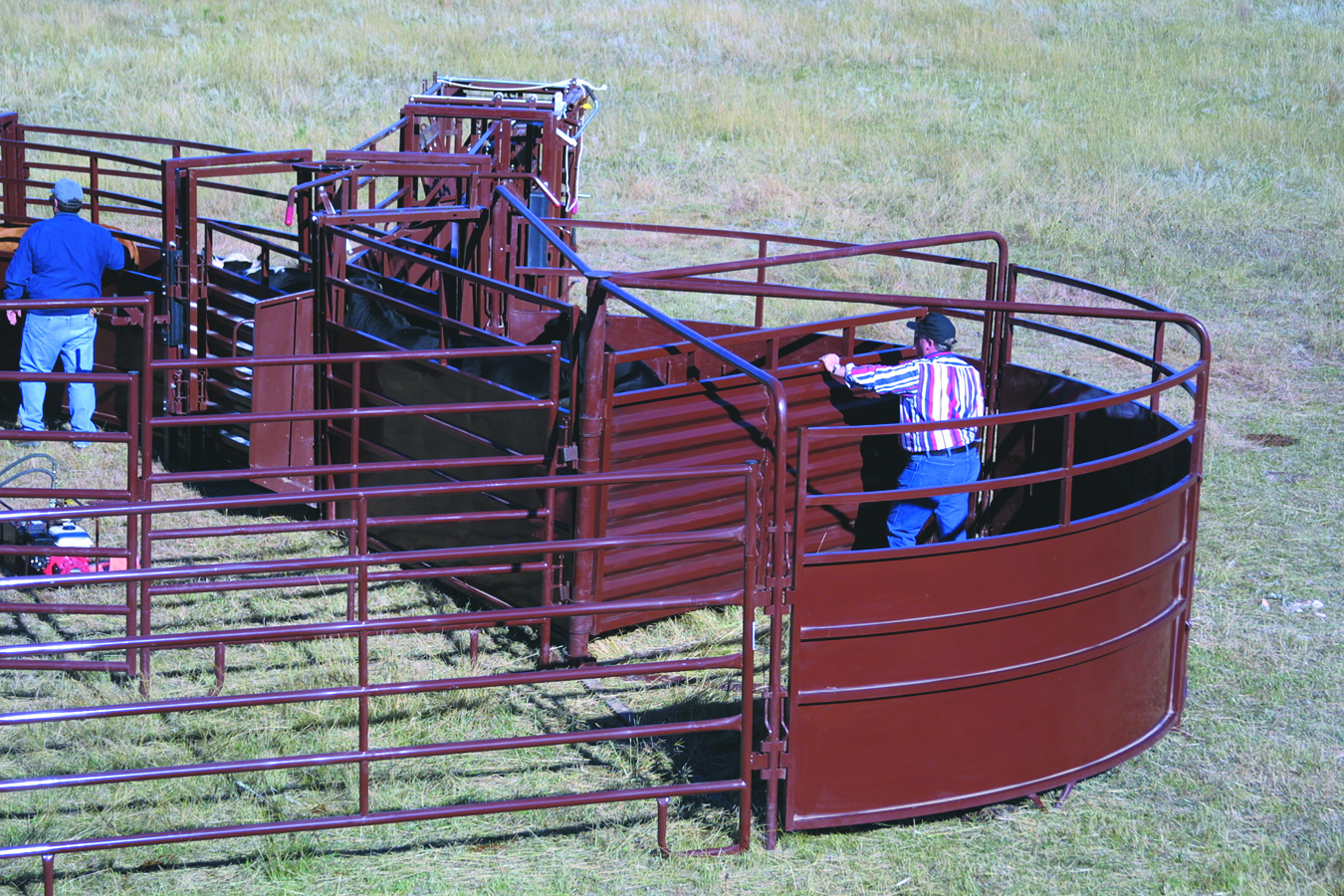

The HiQual Classic Crowd Tub is designed for maximum cattle flow while maintaining operator safety. The squeeze gate is constructed from corrugated steel for strength and quietness, and comes with a rubber coated brake which will lock in any position around the perimeter. The 20' diameter tub is reversible for left or right hand operation with no additional components required.

Specifications

• Overall Dimensions:
       20' Diameter with 10' x 5'5" high Swing Gate, overall height 7'
• Materials:
       Panel: 1 ½" x 16 gauge square with 16 gauge sheeting
       Swing Gate: 2 x .125 wall square endposts with 16 gauge corrugated sheeting
       Gate Latch: 1 ¾" x 16 gauge round with molded rubber handle
• Paint:
       Baked on powder coat paint
• Weight (in pounds):
       1506

• Warranty:
       1 year

Highlighted Features & Advantages

• High capacity for increased productivity
• 4 overhead frame supports for extra stability
• Positive locking crowd gate locks in any position with molded rubber latch for safety or operator
• Gate can be operated from outside the tub
• Grease zirks on center post allows gate to swing freely and easily
• Optimal 5 ½" space below panel prevents soil buildup or animals attempting to escape
• Heavy duty, corrugated steel gate
• Reversible with no additional parts
• Base channels can sink into the ground for added strength and stability
• Easy to assemble

Suggested Applications

• For crowding all types of cattle and bison


Resources:

Crowd Tub Info Sheet
and Parts List
