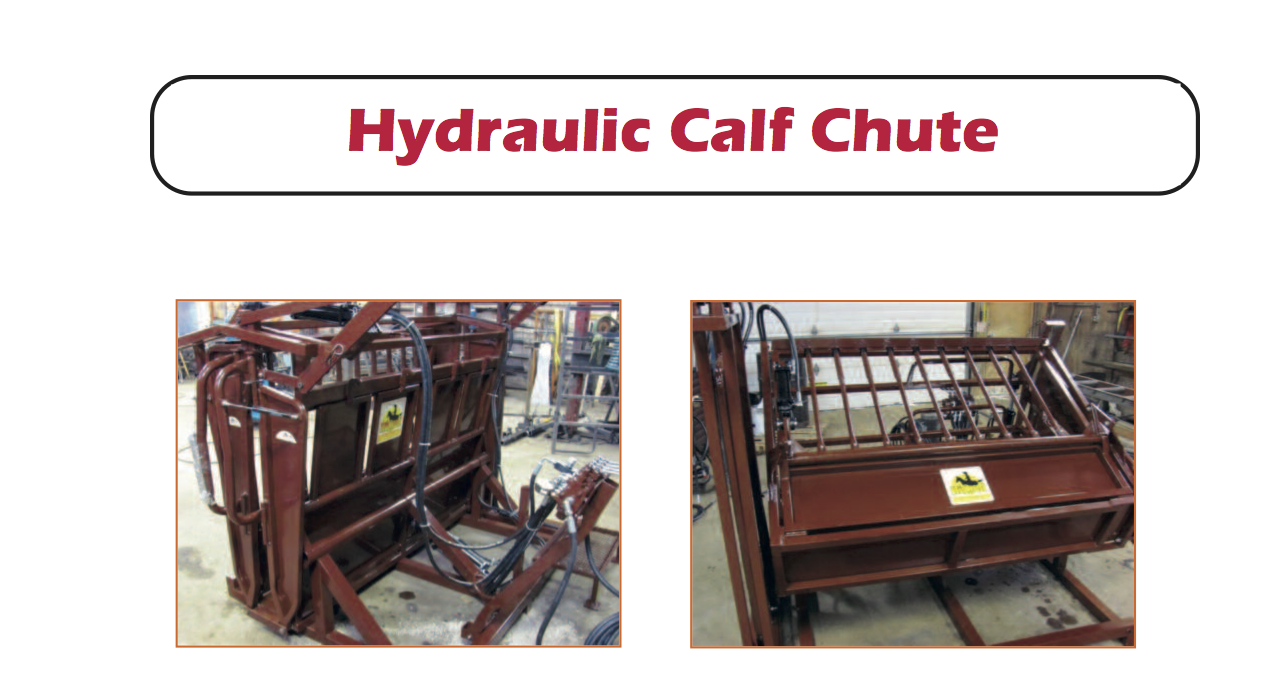

Hydraulic Calf Chute

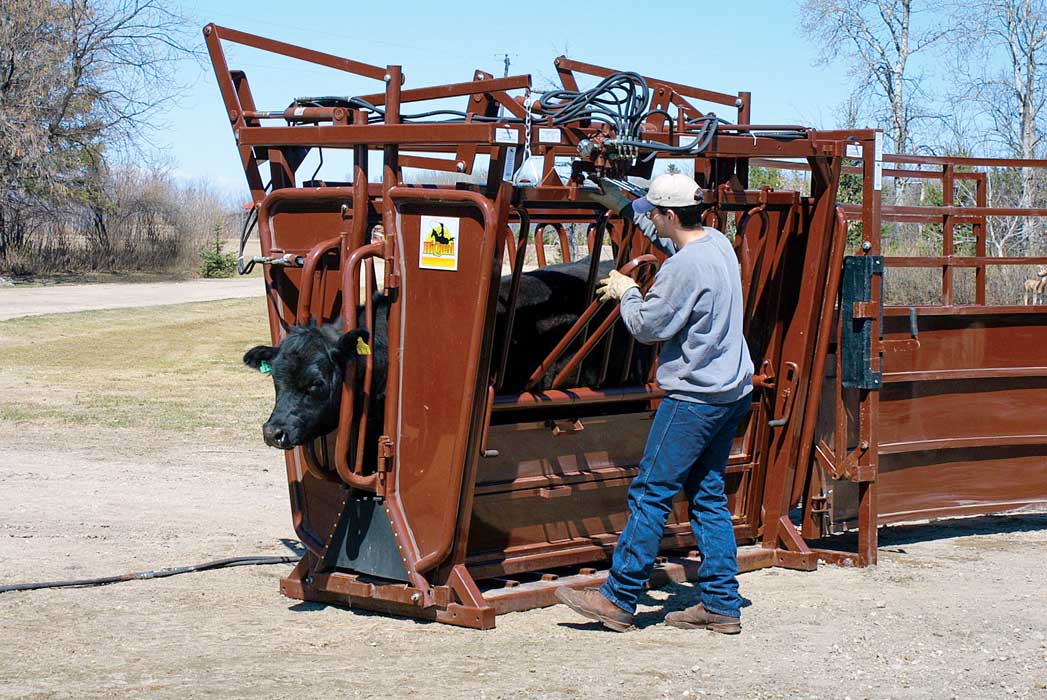

The latest HiQual innovation! This mini chute also works as a tipping table to work calves up to 800 lbs. Hydraulic Squeeze and Headgate along with spring loaded drop-down fold-away bars to access calf when in tipping position. Drop-down doors for access to calf when in regular stand-up chute position. Hydraulically operated scissor-style tailgate to prevent calf from entering when in alley. Leg restraint bar. Controls fold away for ease of transport and storage. Left and right option.

Specifications

• Exterior Dimensions:
       7' 2" L x 4' 7" W x 5'11" H 6'5" W w/hyd controls out

• Squeeze width:
       At floor: 10" wide
       At top bar 1" min: 25" max
• Weight (in pounds):
       1342
• Paint:
       Baked on powder coat paint
• Warranty:
       1 year


Highlighted Features & Advantages

• Scissor style tailgate is easy to operate and provides much better control than traditional guillotine gates
• Neck extender hold tension with gas filled struts
• Complete chute tilts with hydraulics to 78 degrees, allowing some gravity to be used for weight to be at the bottom of the chute
• High-tensile, 58,000 psi tubular steel
• Optional trailer kit
• Can accommodate up to 800 lbs. calves
• 25' of hydraulic hose for use with any type of power pack
• Hydraulic controls fold away for ease of transport and storage
• Table side has 4 fold down doors for access to calf when in chute position
• Working side of the chute has spring loaded bars for ease of access to the calf
• Powder coated HiQual brown color


Resources:

Hydraulic Calf Chute
Info Sheet and Parts List
