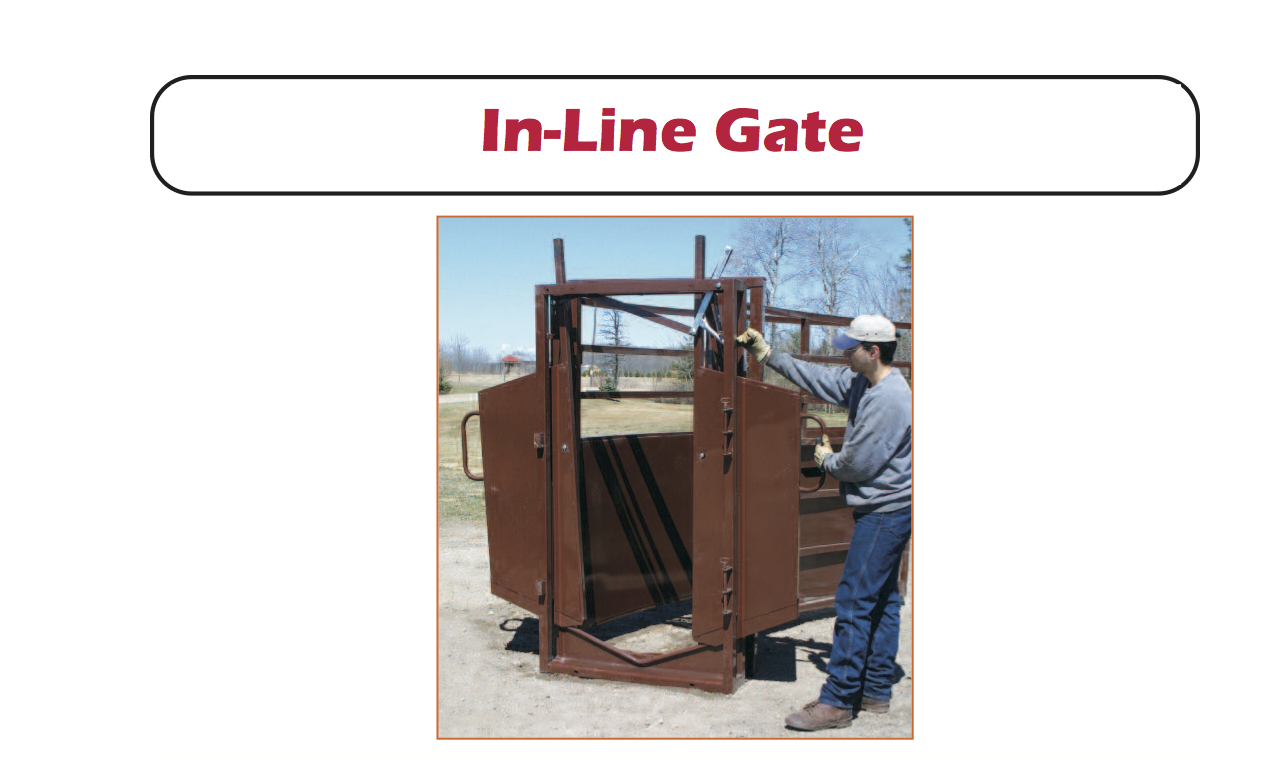

In-Line Gate

Specifications

• Dimension:
       1' long x 4' wide x 7' high

• Materials:
       Doors: 1 ½" x .100 wall square; 1 ¼" x 16 gauge square with 16 gauge sheeting
       Frame: 2" x 16 gauge square; top: 1 ½" x 3/16" angle; bottom: 10 gauge sheeting
       Handle: 1 ½" x 16 gauge round
• Max Opening:
       28.5"

• Gas cylinder:
       120 PSI
• Paint:
       Baked on powder coat paint
• Weight (in pounds):
       240
• Warranty:
       1 year


Highlighted Features & Advantages

• Scissor style gate provides more control of cattle in alley requiring less handling time and effort
• Confines cattle so they can't get over, under or around, resulting in fewer injuries
• Gas cylinder holds gate in position for better control
• Less effort required to open or close gate
• Dual handles allow gate to be opened from either side for greater versatility
• Operates in all weather conditions
• Available in left or right hand configuration


Suggested Applications

• All cattle operations
• Arena return alleys


Resources:

In-Line Gate Info Sheet
and Parts List
