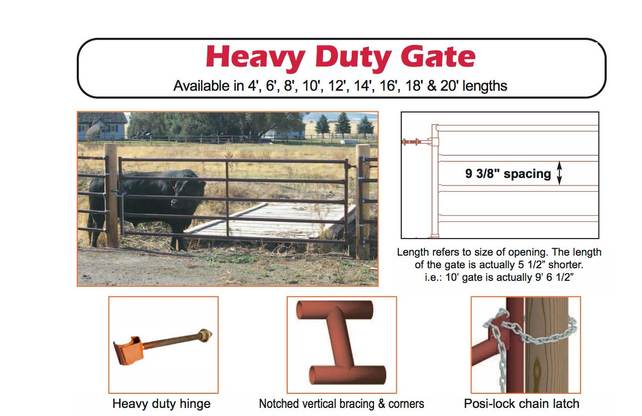

Heavy Duty Gate

Ideal for almost any application the Heavy Duty Line is HiQual's most popular gate. With 2" x 16 gauge steel rated at 58,000 psi, the Heavy Duty Gate is truly stout. The strength is further enhanced by a 1" x 14 3/4" threaded rod hinge that will even go through a railroad tie.

For price, strength and versatility, the HiQual Heavy Duty Gate is truly number one.

Available in 4', 6', 8', 10', 12', 14', 16', 18' & 20' lengths

Specifications

• Height:
       48"
• Posts:
       2" x 16 gauge round, capped with rubber plug
• Rails:
       5 - 2" x 16 gauge round
• Braces:
       1 ½" x 16 gauge round, notched & welded
• Chain:
       ¼" x 48" galvanized proof coil with ¼" quick link
• Hinge:
       1" x 14 ¾" adjustable bolt - 16" long with 14" of thread
• Paint:
       Baked on powder coat paint
• Weight (in pounds):
       4' - 43, 6' - 57, 8' - 74, 10' - 87, 12' - 100, 14' - 117, 16' - 131, 18' - 144, 20' - 161

• Steel:
       High-tensile, 58,000 psi tubular steel
• LIFETIME WARRANTIES!
        Download Informational Brochure or Contact us to learn more.


Highlighted Features & Advantages

• Square corners for livestock safety
• Strong 16 gauge tube ideal for moderate confinement
• Long 48" chain with security latch
• Optimum strength with notched vertical bracing
• Balanced gate with no weak spots

Suggested Applications

• Most popular all purpose gate
• Confinement of cows, calves, and yearlings
• Pastures
• Driveways
• Stallions and mares


Resources:

Heavy Duty Gate
Info Sheet and Parts List
