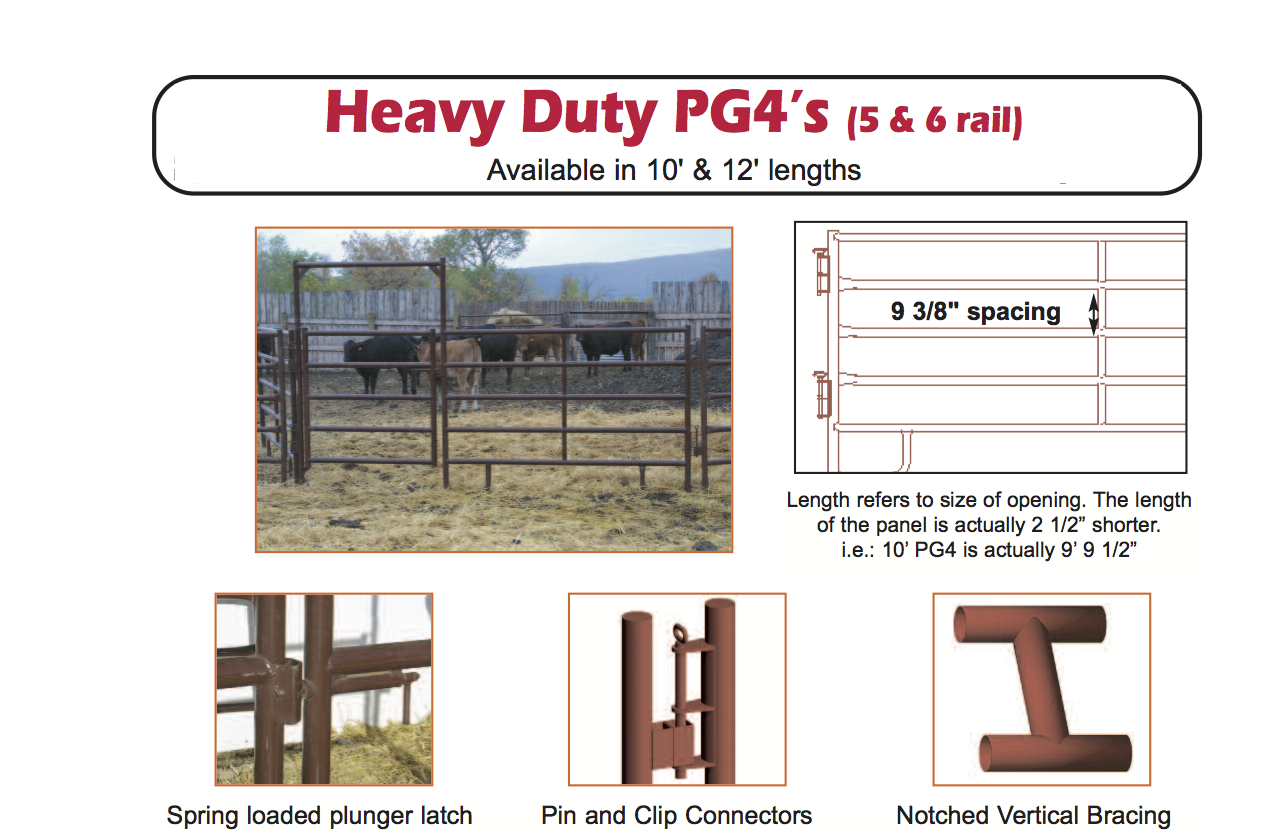

Heavy Duty PG4's



Heavy Duty PG4's (panels with 4' gates) have the same heavy construction as the Heavy Duty Panels but include a 4' walk through gate with self catching plunger latch.

Available in both 5 and 6 rail and 10' & 12' lengths

heavy duty pg4's

Specifications

  • Panel Height:
         5 rail: 60"
         6 rail: 72"
  • Gate Frame Height:
         84"
  • Posts:
         2" x 14 gauge round, capped with rubber plug
  • Rails:
         2" x 14 gauge round
  • Braces & Legs:
         1 ½" x 16 gauge round
  • Connectors:
         Positive Locking, Pin & Clip
  • Hinge:
         14 gauge platform insert
  • Paint:
         Baked on powder coat paint
  • Weight (in pounds):
         5 rail: 10' - 155, 12' - 175
         6 rail: 10' - 172, 12' - 196
  • Steel:
         High-tensile, 58,000 psi tubular steel
  • Warranty:
         1 year

Highlighted Features & Advantages

  • Spring loaded, plunger latch for quick access
  • Square corners for animal safety
  • Mud legs for additional support & extended life

Suggested Applications

  • Corrals
  • Stalls
  • Working alleys
