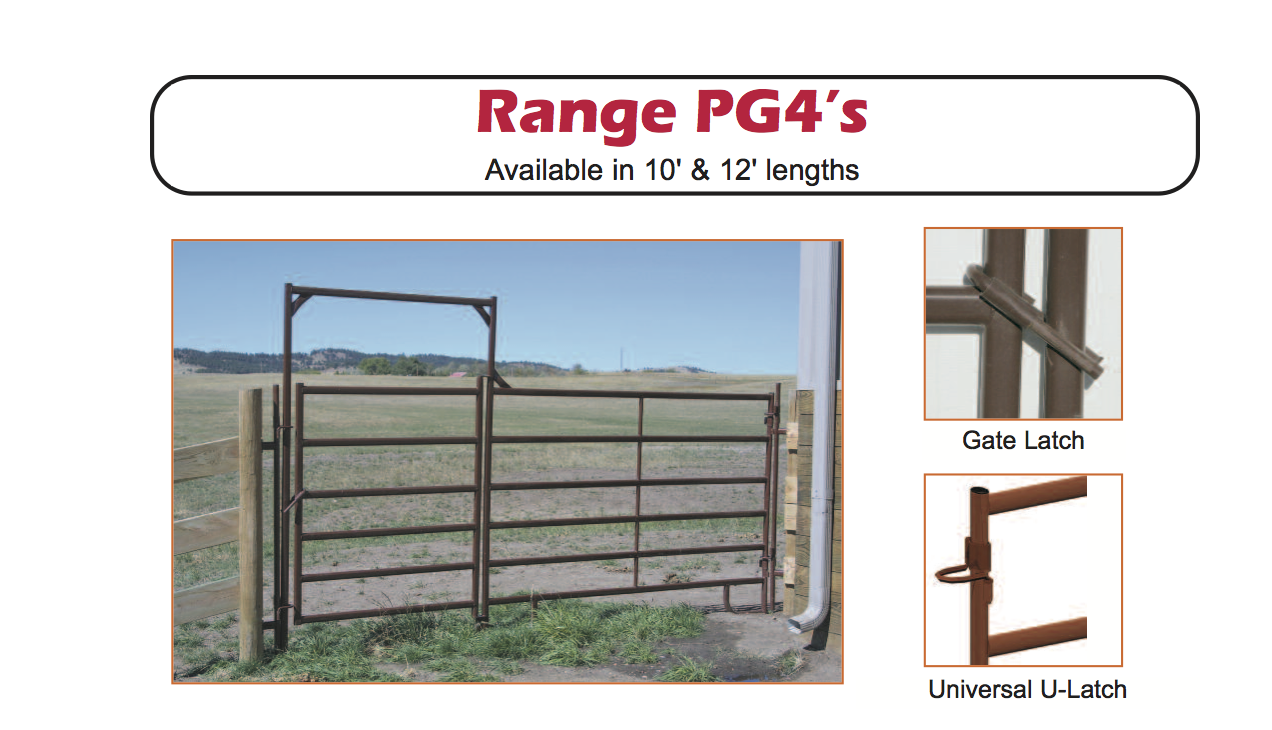

Range PG4's



Range PG4's are Range Panels with a built in 4' gate.

Available in 10' & 12' lengths

range pg4's

Specifications

  • Posts:
         1 ⅛" x 1 ¾" x 16 gauge oval, capped with rubber plugs
  • Rails:
         6 rails with 9 ¾", 9 ¾", 7 ½", 7 ½", 7 ½" (top to bottom spacing)
  • Height:
         Panel - 63", Gate Frame - 84"
  • Latch:
         Sliding Rod
  • Connectors:
         Universal U-Latch
  • Paint:
         Baked on powder coat paint
  • Weight (in pounds):
         10' - 105, 12' - 117
  • Warranty:
         1 year
  • Steel:
         High-tensile, 58,000 psi tubular steel

Highlighted Features & Advantages

  • Improved cattle flow with narrow bottom rail spacing
  • Easy to operate latch
  • Secure, versatile connector is flexible on uneven ground
  • Notched vertical bracing for overall strength

Suggested Applications

  • Cattle and horses in light confinement
  • Temporary stalls
  • Perimeter fencing
  • Roping arenas
  • Round pens
