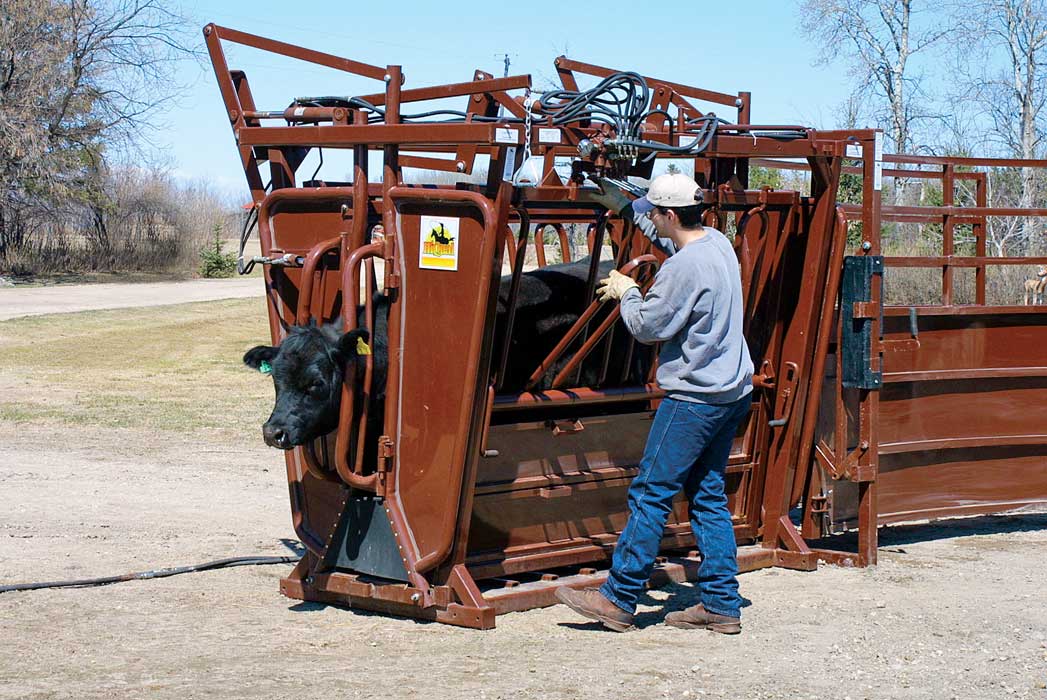

XL Hydraulic Chute

The XL Hydraulic Chute comes with all the features of our regular Hydraulic Chute but is 20" longer and includes a Palpation Door on the operator's side. This provides safe and easy access for A.I. work and pregnancy checking.

Specifications

• Exterior Dimension:
       44 ½" W x 112.5" Long (at base) x 77" H (open) or 97" (closed)

• Squeeze width:
       At floor: 7" min - 18 ½" max
       At belly: 11" min - 25 ¼" max

• Weight (in pounds):
       2680

• Paint:
       Baked on powder coat paint
• Warranty:
       1 year

Highlighted Features & Advantages

• Quiet (power unit is separate from chute and can be set up away from chute)
• Can accommodate all animal sizes

• Easy access to all parts of animal
• High-tensile 58,000 psi tubular steel

• Safe for animal
• Safe for operator
• Can be operated from any hydraulic source
• Optional trailer kit
• 25' of hydraulic hose for use with any type of power pack
• Left or right hand chute available
• Side exit door
• Double palp door standard on XL chute
• Hydraulic adjustable side, for smaller animal comfort
• Weight bar holes for scale mounting
• Pressure release valve for animal comfort
• Scissor style headgate and tailgate
• Powder coated HiQual brown color

Suggested Applications

• Large cow/calf operations and feedlots

• Veterinarians


Resources:

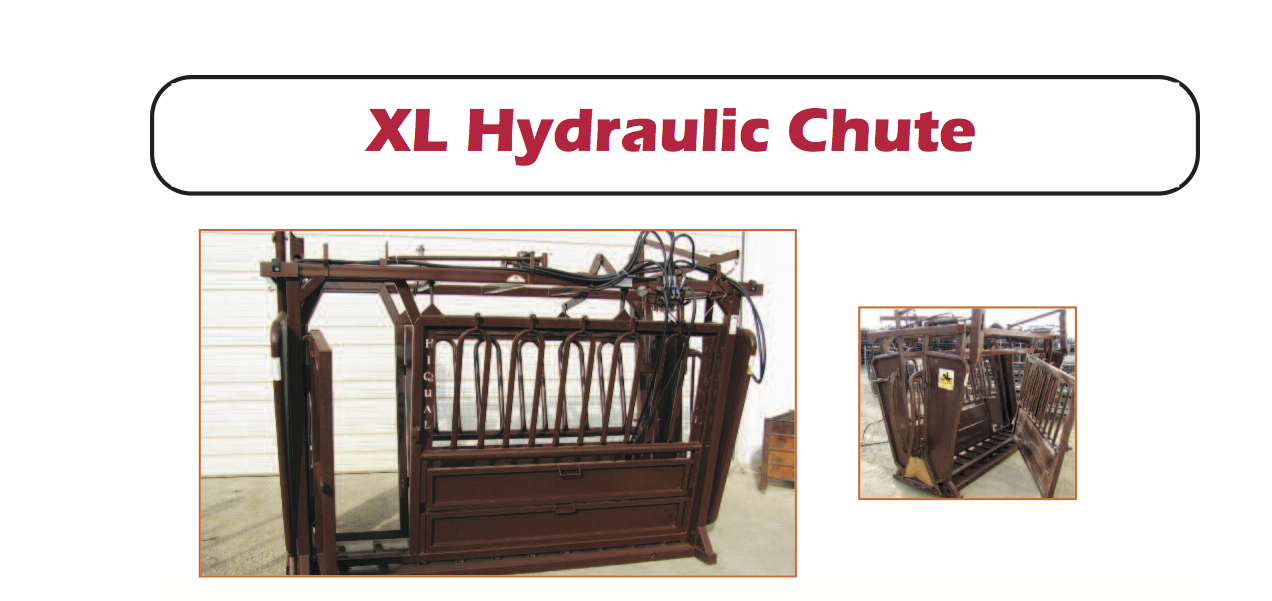

XL Hydraulic Chute
Info Sheet and Parts List
