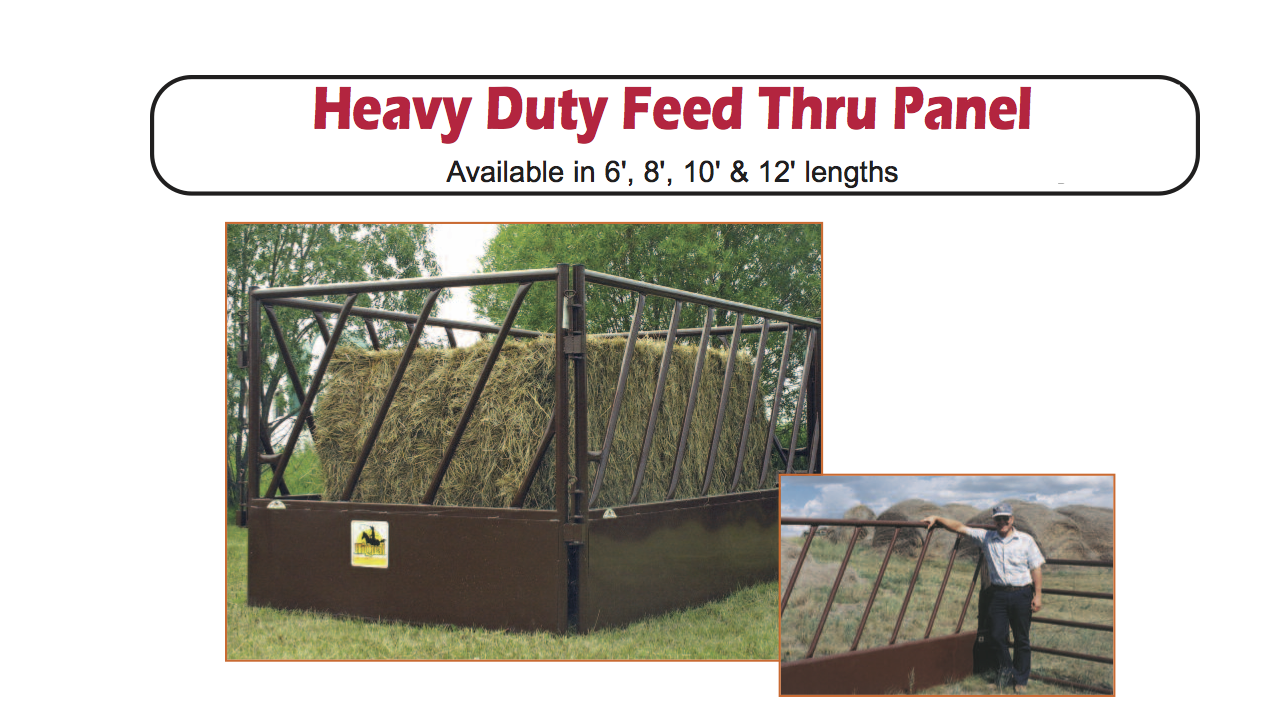

Heavy Duty Feed Thru Panel



Heavy Duty Feed Thru Panels can be configured as stand-alone feeders or as part of a fence line. The balanced design and extra heavy construction stands up well to the heavy pressure. The panels connect with the same pin and clip system as the Heavy Duty Panel line.

Available in 6', 8', 10' & 12' lengths

heavy duty feed thru panel

Specifications

  • Posts:
         2" x 14 gauge round, capped with rubber plugs
  • Mid-Rails:
         2" 125 wall square tubing
  • Sheeting:
         16 ½" x 16 gauge
  • Slant Tube:
         1 ½" x 16 gauge round
  • Spacing:
         6' - 3 stations, 15 ¾" wide
         8' - 5 stations, 13 ½" wide
         10' - 7 stations, 12 ¾" wide
         12' - 9 stations, 12 ¼" wide
  • Height:
         60"
  • Connections:
         Pin and Clip
  • Paint:
         Baked on powder coat pain
  • Weight (in pounds):
         6' - 83, 8' - 106, 10' - 146, 12' - 174
  • Warranty:
         1 year

Highlighted Features & Advantages

  • Multiple uses for feeding hay inline or from a stack, or large square bales
  • Improved animal comfort during feeding
  • Feed savings
  • Easy to assemble and connects to HiQual Heavy Duty Panels

Suggested Applications

  • Weaned calves
  • Dairy heifers
  • Young horses
  • Dairy free stall barn
  • Feedlot
  • Large square bales
