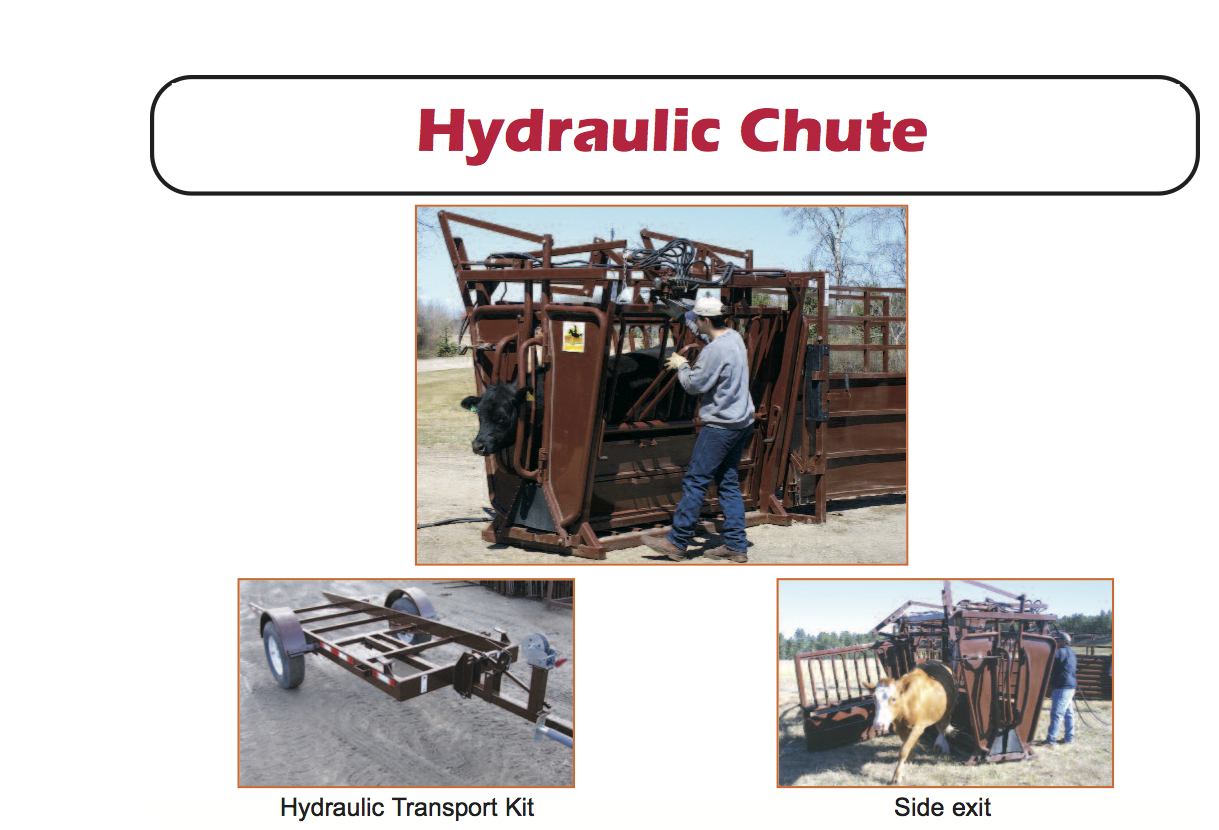

Hydraulic Chute

The HiQal Hydraulic Squeeze Chute was designed to provide the quality, strength and features demanded by the largest feedlots, at a price the average rancher can afford. Standard features include a side exit, adjustable squeeze width, neck extenders and drop down side boards. The increased efficiency, speed and safety make for a quick return on investment. An XL Chute is also available with additional length and a built in Palpation Door. Available in left or right hand configuration.

Specifications

• Exterior Dimensions:
       44 ½" W x 92" L (at base) x 77" H (open) or 97" (closed)

• Squeeze width:
       Width at floor: 7" min - 18 ½" max
       Width at belly bar: 11" min - 25 ¼" max
• Weight (in pounds):
       2220
• Paint:
       Baked on powder coat paint
• Warranty:
       1 year


Highlighted Features & Advantages

• Quiet (power unit is separate from chute and can be set up away from chute)
• Can accommodate any size of cattle
• Easy access to all parts of animal
• Hydraulic neck extender safely keeps animals head from moving
• Safe for animal
• Safe for operator
• Affordable (can be operated with tractor hydraulics)
• Reversible for right or left hand operation
• Side exit with vet lock
• Pressure release valve prevents animal injury
• Optional Palpation Door
• Scissor style headgate

Suggested Applications

• Larger cow/calf operations and feedlots up to 20,000 head
• Veterinarians


Resources:

Hydraulic Chute
Info Sheet and Parts List
