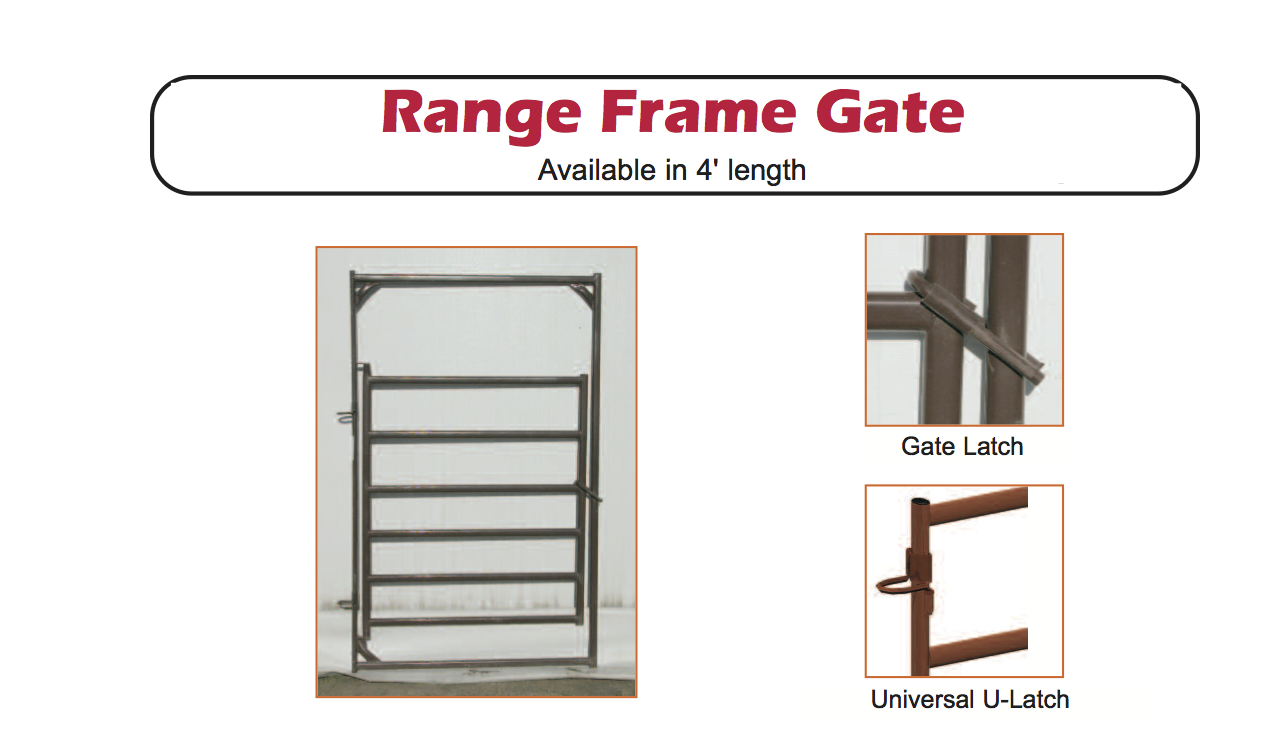

Range Frame Gate



The Range Frame Gate provides a convenient pass through in your Range Panel system and features a simple but effective gravity latch.

Available in 4' length

range frame gate

Specifications

  • Length:
         53"
  • Opening:
         48"
  • Posts:
         1 ⅛" x 1 ¾" x 16 gauge oval, capped with rubber plugs
  • Rails:
         6 rails with 9 ¾", 9 ¾", 7 ½", 7 ½", 7 ½" (top to bottom spacing)
  • Height:
         84"
  • Latch:
         Sliding Rod
  • Connectors:
         Universal U-Latch
  • Paint:
         Baked on powder coat paint
  • Weight (in pounds):
         63
  • Warranty:
         1 year
  • Steel:
         High-tensile, 58,000 psi tubular steel

Highlighted Features & Advantages

  • Easy to operate latch
  • Oval tubing for extra strength
  • Corner gussets

Suggested Applications

  • Temporary stalls
  • Round pens
  • Light confinement
  • Roping arenas
