Power Units

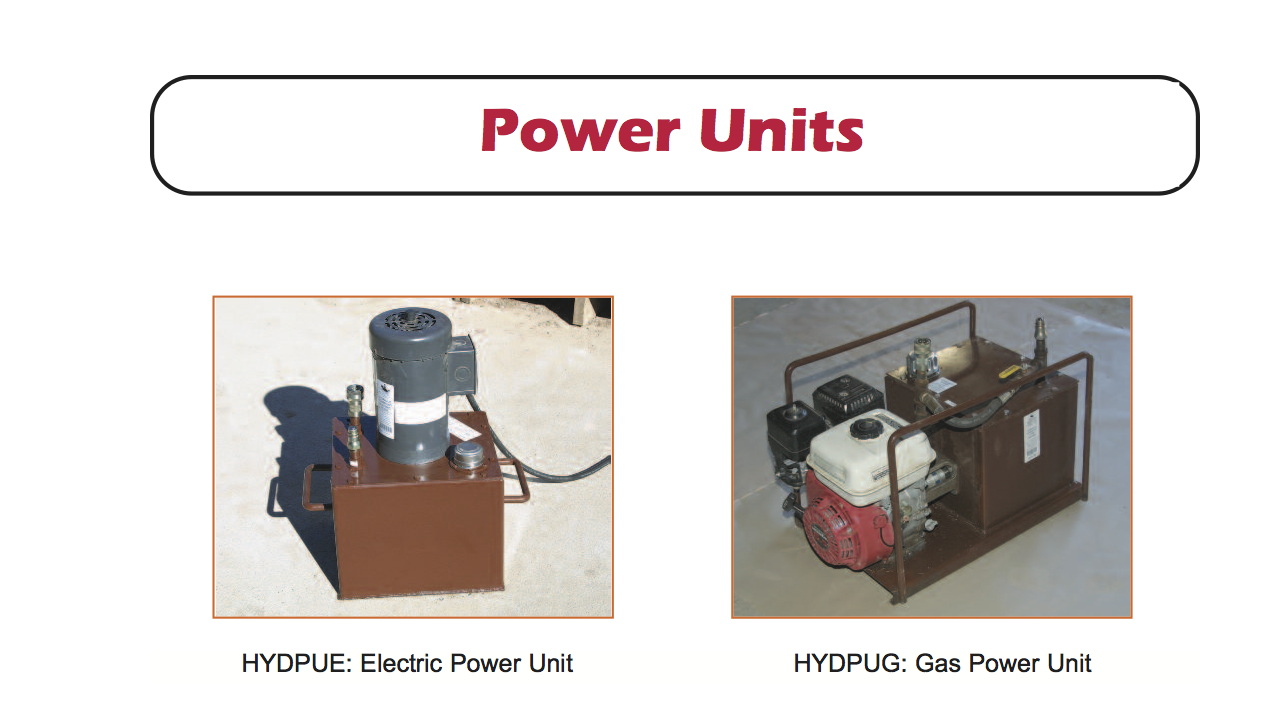

The Electric Power Unit connects to the chute's 20' hydraulic hoses. This allows you to place the unit well away from the working area to reduce noise and stress on both the animal and operator. The power unit operates on 120V or 240V and is powered by a 2 h.p. motor. This unit produces 16gpm of flow.

The Gas Power Unit is powered by a 6.5 h.p. Honda engine, this unit allows you to operate your HiQual Hydraulic Chute in even the most remote locations. This unit produces 16gpm flow.

power units

Specifications

  • Dimension:
         Electric: 14" L x 12" W x 26" H
         Gas: 28" L x 17" W x 17" H
  • Weight
         Electric: 115 lbs.
         Gas: 98 lbs.
  • Power Supply:
         Electric: 120V or 240V
         Gas: Honda 6.5 H.P.
  • Power Draw:
         Electric: 220V - 7 amp; 110V - 20 amp
         Gas: 2000 PSI @ 3500 rpm
  • Fluid Capacity:
         Electric: 5 gal. - 13 gallons per minute from 2 stage pump
         Gas: 5 gal. - 13 gallons per minute from 2 stage pump

Highlighted Features & Advantages

  • Electric external power unit can be wired for 120V or 240V applications and is powered by a 2 h.p. motor (240V standard)
  • Gas external power unit powered by a 6.5 h.p. Honda engine, this unit allows you to use your Hydraulic Chute in even the most remote location

Suggested Applications

  • Electric power unit: Permanent installations
  • Gas power unit: Portable use and remote locations

Resources:

Power Units Info Sheet
