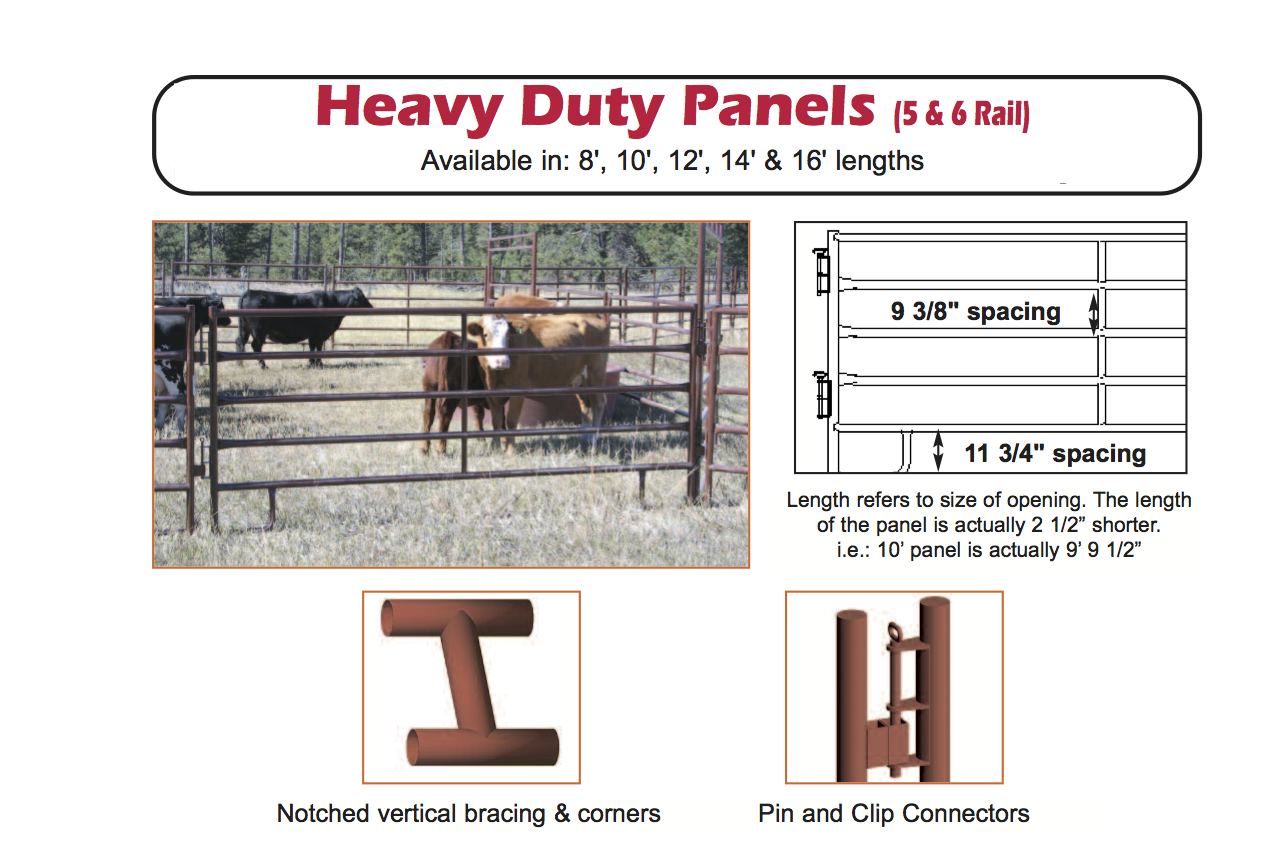

Heavy Duty Panels



HiQual Heavy Duty Panels have set the standard for portable confinement. Available in 5' or 6' tall versions, the Heavy Duty Panel line is ideal for everything from calving barns and working pens to feedlots and rodeo arenas.

5 Rail Panels Available in: 8', 10', 12', 14' & 16' lengths

6 Rail Panels Available in: 10', 12', 14' & 16' lengths

heavy duty panels

Specifications

  • Height:
         5 rail: 60"
         6 rail: 72"
  • Posts:
         2" x 14 gauge round, capped with rubber plug
  • Rails:
         5 or 6 - 2" x 16 gauge round
  • Braces & Legs:
         1 ½" x 16 gauge round
  • Panel Connector:
         Pin & Clip System
  • Paint:
         Baked on powder coat paint
  • Weight (in pounds):
         5 rail: 8' - 81, 10' - 95, 12' - 108, 14' - 125, 16' - 138
         6 rail: 10' - 110, 12' - 125, 14' - 148, 16' - 162
  • Steel:
          High-tensile, 58,000 psi tubular steel
  • Warranty:
         1 year

Highlighted Features & Advantages

  • Ideal for heavy confinement
  • Secure, safe and versatile positive locking pin and clip system
  • Notched vertical bracing for overall strength
  • Square corners prevent animals' leg from sliding to edge & slipping between 2 panels
  • Easy to move on 12" leg supports
  • Mud legs for extra support & extended life
  • Spring loaded, plunger latch for ease of use

Suggested Applications

5 rail

  • Calving barns
  • Confinement

6 rail

  • Rodeos
  • Bulls, bison, draft horses
