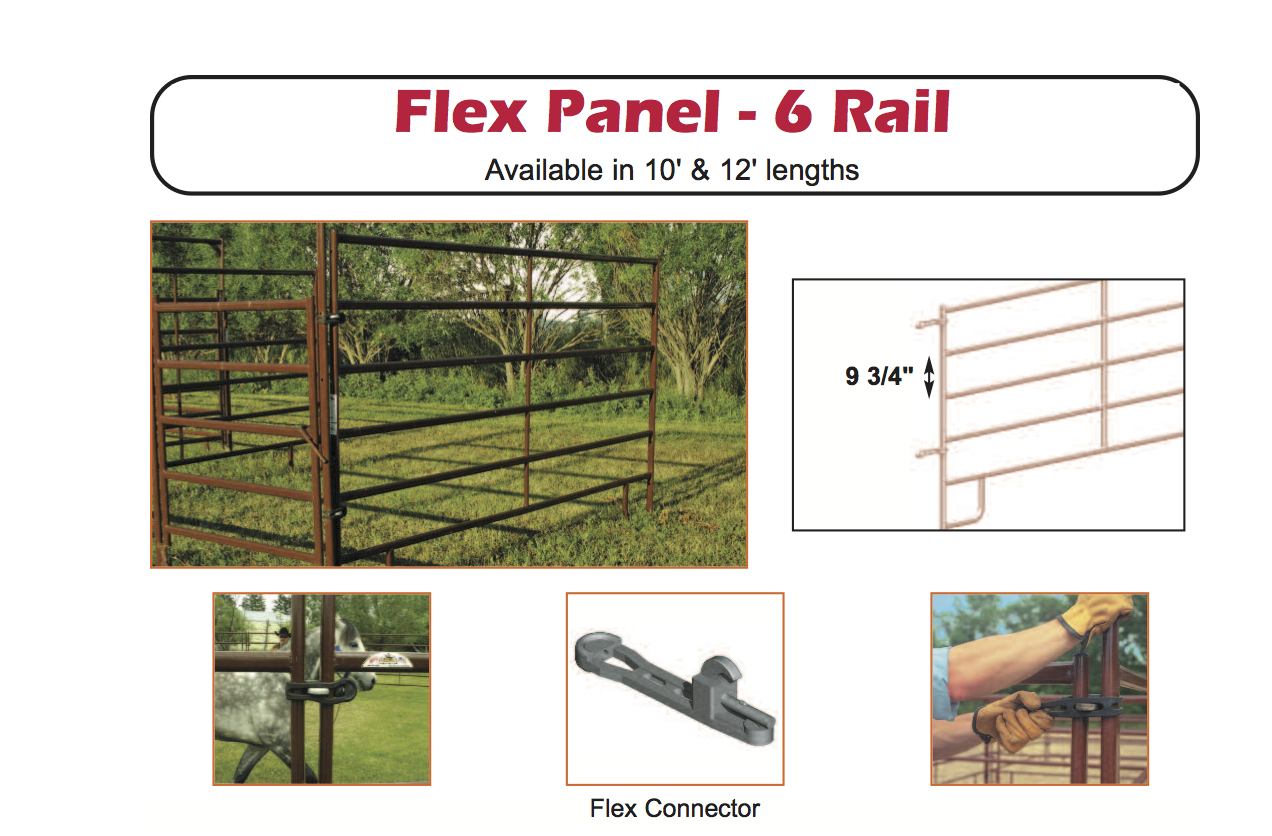

Flex Panel - 6 Rail

The Flex Panel is simply the safest equine panel available. The patented Flex Connector acts as a shock absorber, reduces noise, and creates a safe, tight connection. Additional connectors can be added for use with cattle.

These 6 Rail Panels are available in 10' and 12' lengths.

Specifications

• Posts:
       1 ⅛" x 1 ¾" x 16 gauge oval, capped with rubber plug
• Rails:
       1 ⅛" x 1 ¾" x 16 gauge oval
• Braces:
       1" x 16 gauge round tubing, notched & welded
• Height:
       72"
• Connectors:
       Patented Hi-Density Molecular Rubber with UV Inhibitors
• Paint:
       Baked on powder coat paint
• Weight (in pounds):
       10' - 78, 12' - 92

• Warranty:
       1 year on panel, 3 year on flex connectors
• Steel:
       High-tensile 58,000 psi tubular steel

Highlighted Features & Advantages

• Rubber connector reduces noise and absorbs impact
• Versatile and quick attachment to other panels and on uneven ground
• Lightweight, easily portable
• Longer life connectors with UV inhibitors
• Easy to move on 12" leg supports
• Up to 4 connectors per post
• Less than 1" gap between panels

Suggested Applications

• Horses in light confinement
• Round pens
• Portable pasture panels


Resources:

Flex Panel 6-Rail Info Sheet and Parts List
