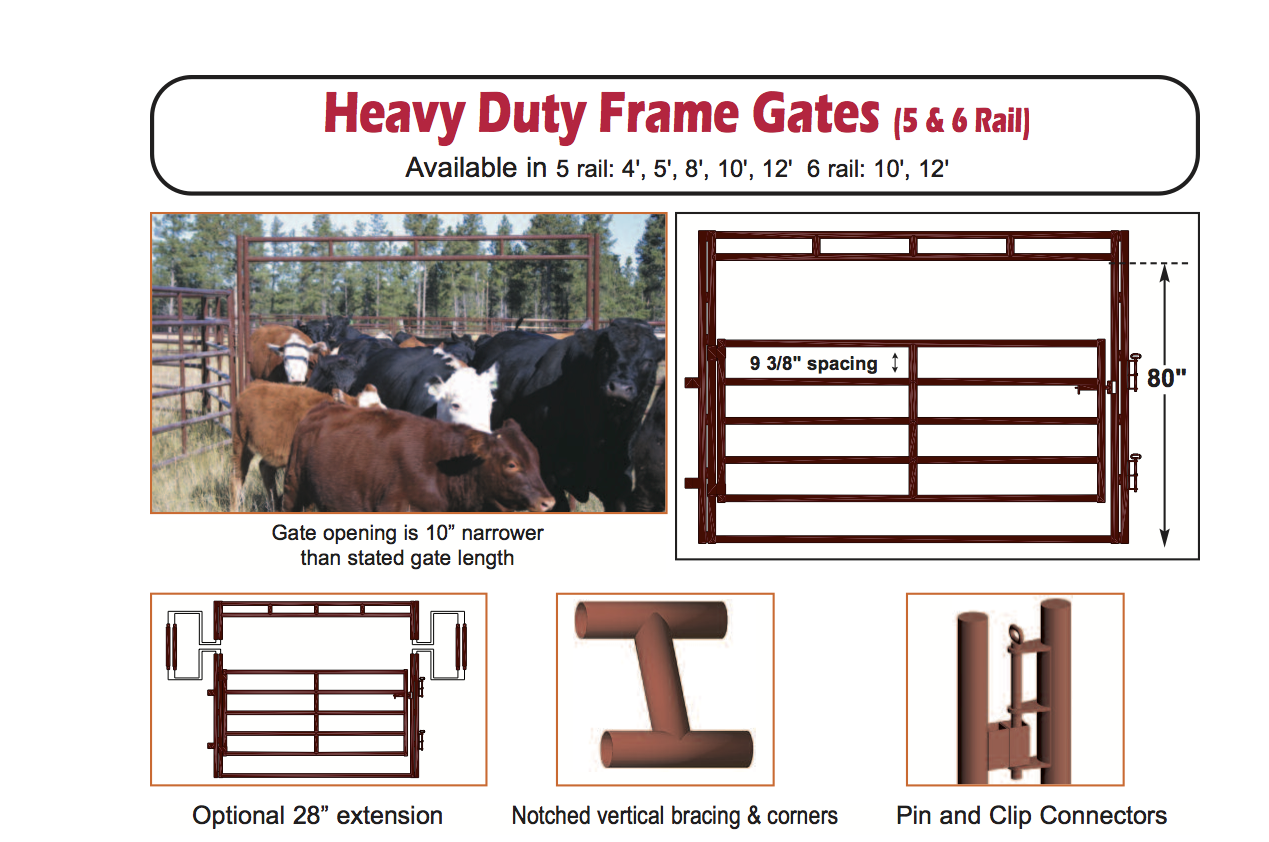

Heavy Duty Frame Gates and Extenders

HiQual's Heavy Duty Frame Gates provide an extremely durable and portable gate to complement the Heavy Duty Panel line. These gates are engineered to withstand heavy crowding situations and are ideal for working pens and temporary confinement.

Available in 5 Rail: 4', 5, 10' 12'

Specifications

• Weight (in pounds):
       92"
• Gate Posts & Rails:
       2" x 14 gauge round
• Gate Braces:
       1 ½" x 16 gauge round
• Frame Horiz. Rails:
       2" x 14 gauge round
• Frame Top Brace:
       1 ½" x 16 gauge round
• Frame Posts:
       4', 5', & 8' - 2" x 14 gauge round
       10' & 12' - 2" x 11 gauge round
• Gate Latch:
       Spring loaded plunger
• Paint:
       Baked on powder coat paint
• Weight (in pounds):
       5 rail: 4' - 91; 5' - 104; 8' - 199; 10' - 220; 12' - 252
       6 rail: 10' - 240; 12' - 274
• Steel:
        High-tensile, 58,000 psi tubular steel
• Warranty:
       1 year


Highlighted Features & Advantages

• Square corners for safety
• Notched vertical braces for added strength
• Balanced for strength, no weak spots
• Spring loaded, plunger latch for ease of use

Suggested Applications

• Crowding pens and alleys
• Feedlots
• Rodeos
• Riding arenas


Resources:

Heavy Duty Frame Gates and Extenders Info Sheet
